Machine Description
It is composed with bottle infeed conveyor, mechanical gripper, layerboard & pallet storage & supply system. During machine running, pallet has been transferred into machine. It will automatically make bottle matrix, layerboard and pallet will supply to palletizer position accordingly. One finishing palletizing, full pallet will be transferred to offloading position.
Semi-auto palletizer also available according to capacity required
-
Feature
-
Machine Parameter
Item
Technical Parameter
Note
Model
EPPH-A100
Air pressure
0.6±0.1MPa,
Air Consumption
100L/min
Applied bottle size
Between 100ml-30L
Actual sample Required
Pallet height
1200~2800mm
On demand Designed
Pallet size
1200x1000mm/1100x1000mm
On demand Designed
Speed
50 ~300 BPM
Note：Above number is standard products, please contact us for any special request.

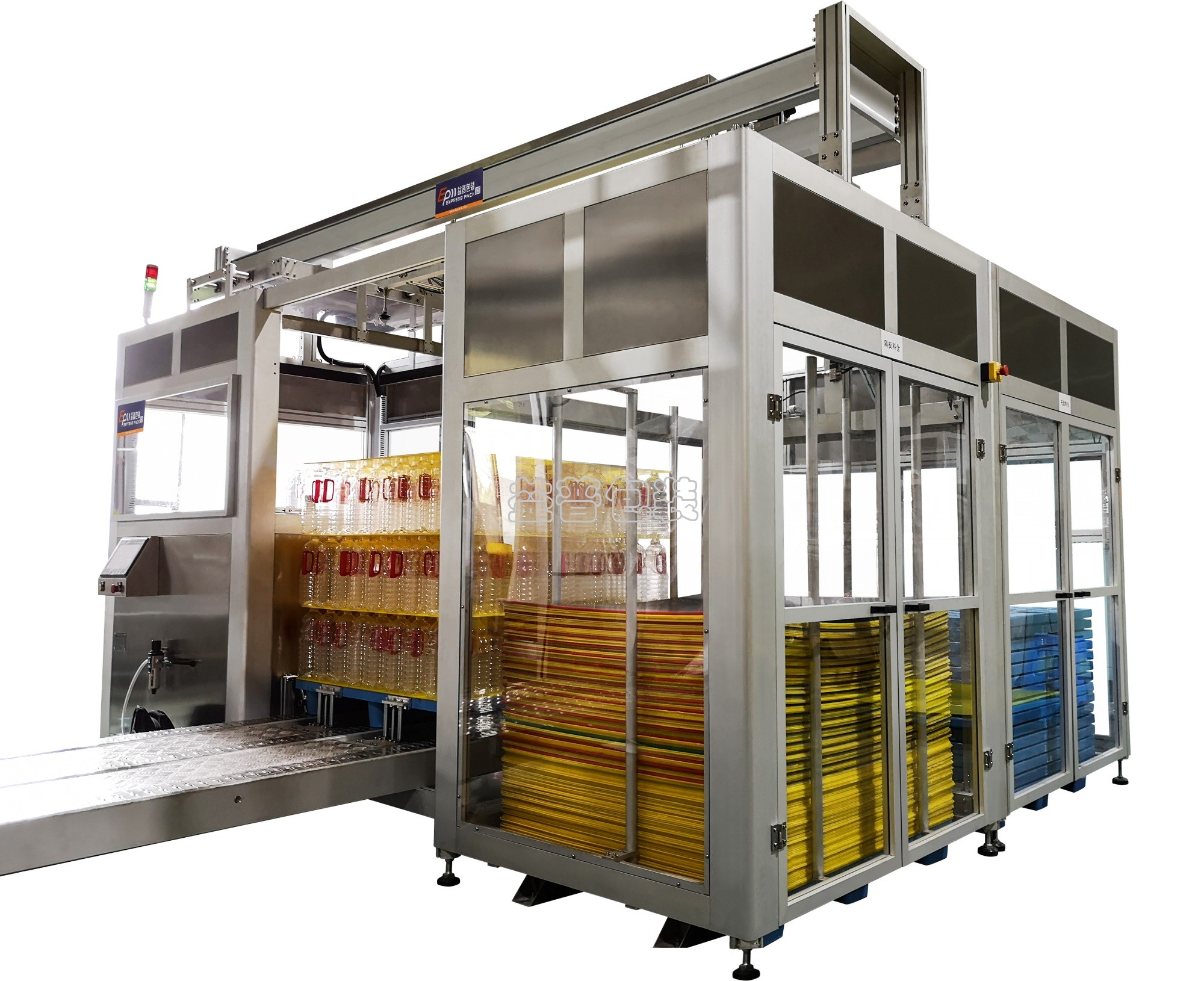

Automatic Bottle Palletizer Machine
